640388-2
Manufacturer:
TE Connectivity
Mfr.Part #:
640388-2
Datasheet:
Description:

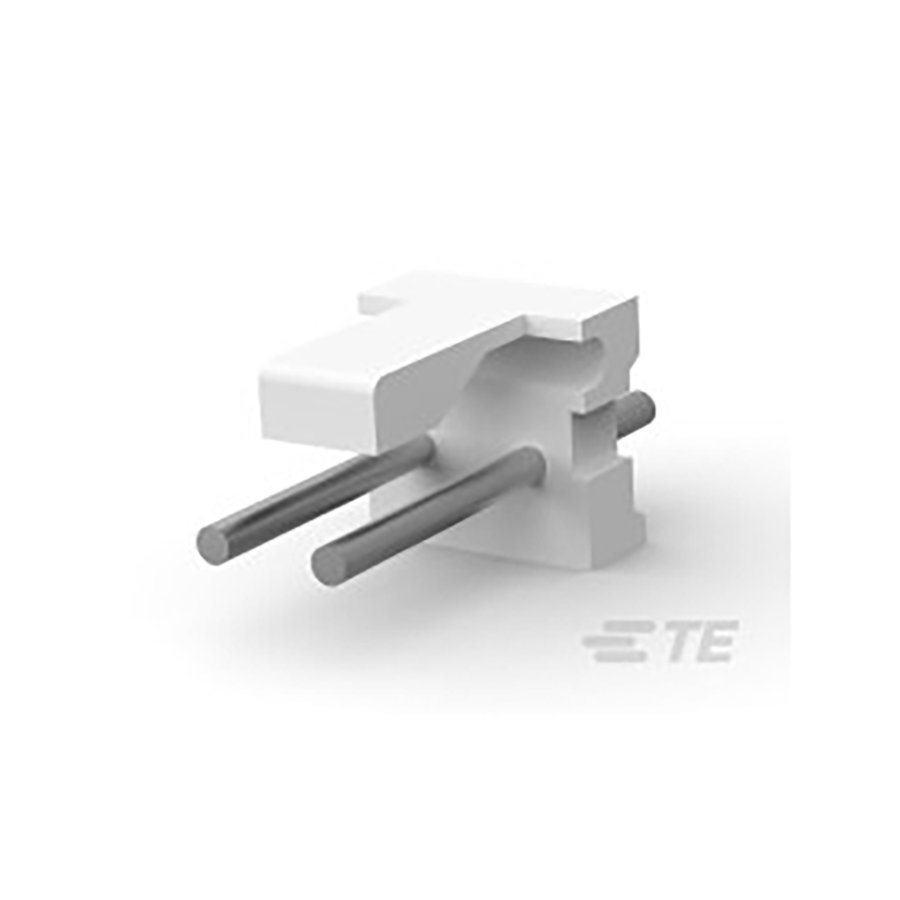

Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Length | 7.92 mm |
| Termination | Solder Pin |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Orientation | Vertical |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Housing Color | Natural, White |
| Plating | Tin |
| shrouded | No |
| Plating Thickness | 2.54 µm |
| Number of Power Positions | 2 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length | 3.18 mm |
Stock: 3
Distributors
pcbx
pcbxUnit Price$0.17030
Ext.Price$0.17030
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17030 | $0.17030 |
| 10 | $0.15296 | $1.52960 |
| 50 | $0.13738 | $6.86900 |
| 100 | $0.12118 | $12.11800 |
| 500 | $0.10689 | $53.44500 |
| 1000 | $0.09639 | $96.39000 |
| 3000 | $0.08693 | $260.79000 |
